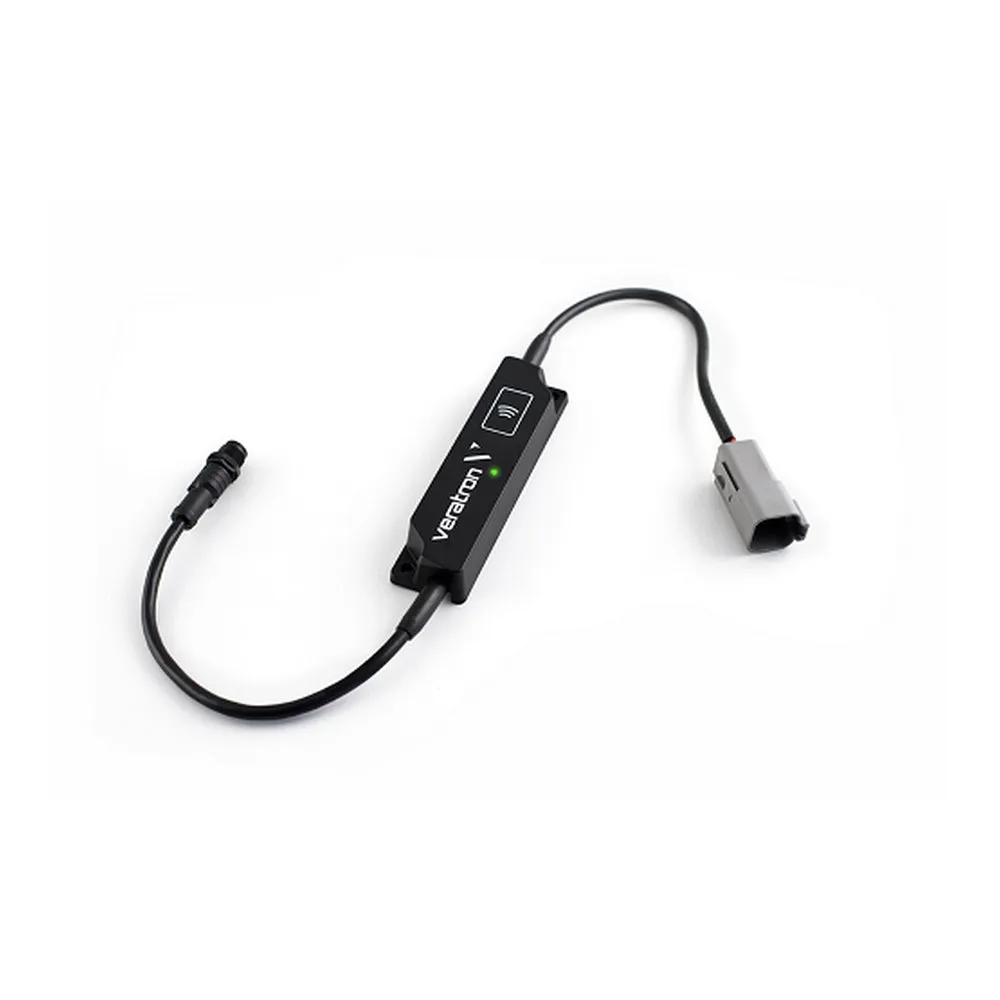

The Veratron Link-up Gateway 0-5V delivers a 5V-supply voltage that can be used to power an passive sensor and transmit to the information to any NMEA 2000-capable display.

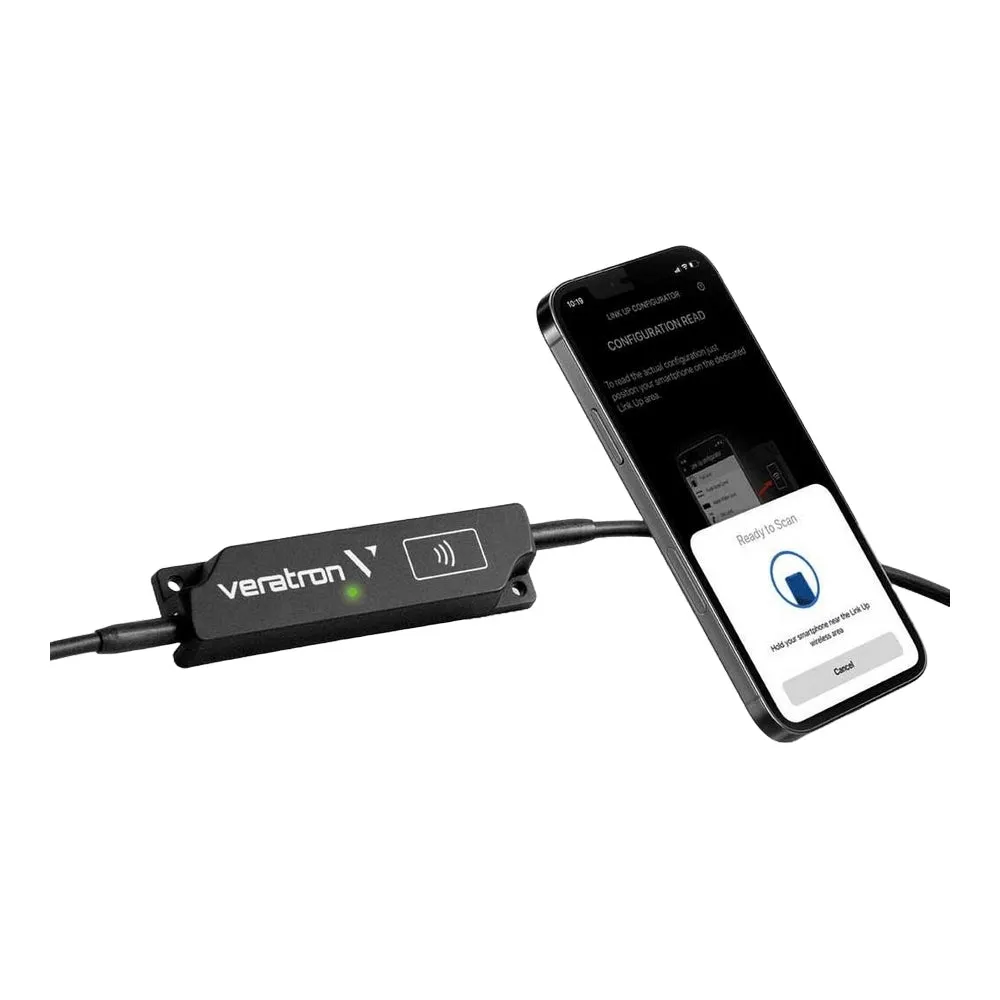

The Veratron Link-up Gateway has a wireless configuration feature that allows you to set up the device using a companion mobile app available for Android and iOS devices. Allowing you to easily configure the device using the mobile app and a wireless NFC interface.
It has a low current consumption and a high protection class, making it suitable for harsh marine environments. Because of its air-sealed housing, the device can be installed in an engine compartment according to ISO 8846:1990 (protection against ignition of surrounding flammable gases). the product is CE, Reach and RoHS compliant.
Fast, Powerless, Secure, Safe and Cost-Effective.
Features:
- Function: Fuel level, Fresh water level, Waste water level, Trim, Oil temperature, Coolant temperature, Engine oil pressure, Transmission oil pressure, Boost pressure, Trim tabs, Rudder, Transmission oil temperature
- Wireless configurable via smartphone app
- customizable sensor curves
- Approved for engine compartments acc. to ISO8846:1990
- Provides 5V-Source for passive sensors
- Alarms setup and transmission on NMEA 2000®
- Plug-and-Play installation
- NMEA 2000® certified
Specifications:
- Input signal range: 0 - 5V
- Output current on 5V-source: 15mA
- Output: NMEA 2000
- Current consumption: ≤ 100 mA
- Nominal voltage: 12 V (from NMEA 2000® network)
- Wireless interface: NFC
- Operating temperature: -30°C to 80°C
- Dimensions: 125 mm x 32 mm ( cables)
- Cable length: 25cm
- Protection class: IP X9/K
- Compliance: CE, UKCA, Reach, RoHS, ISO8846:1990
